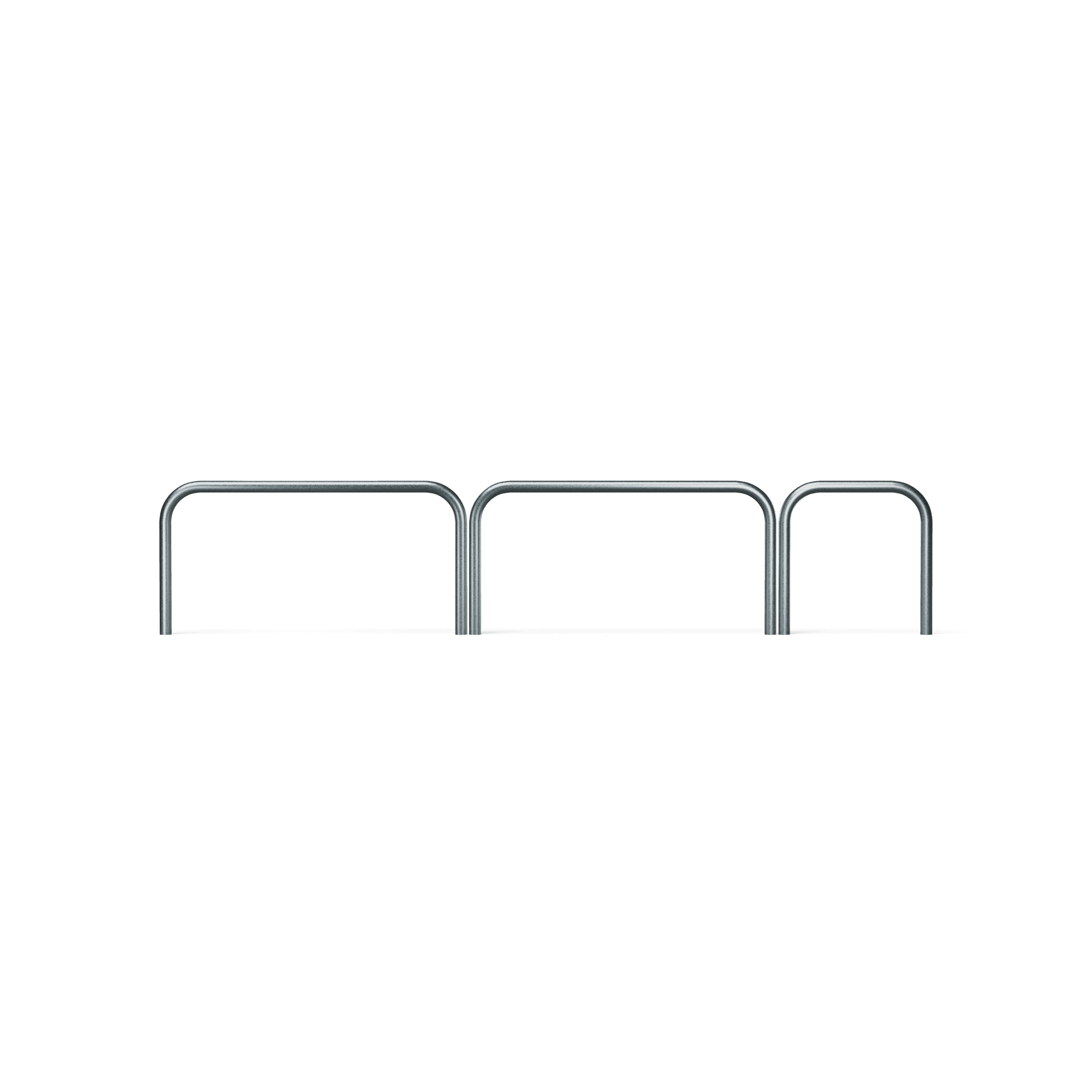

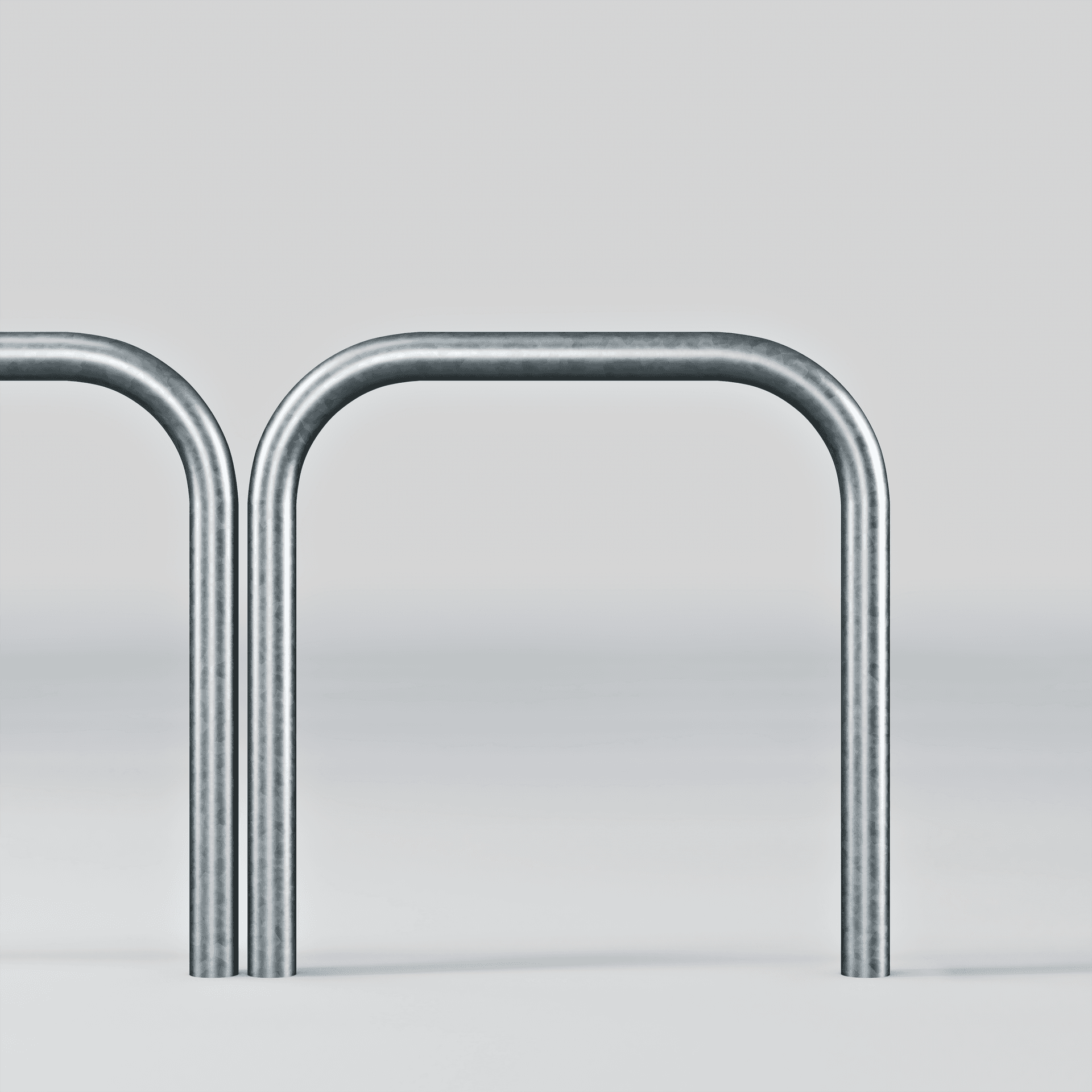

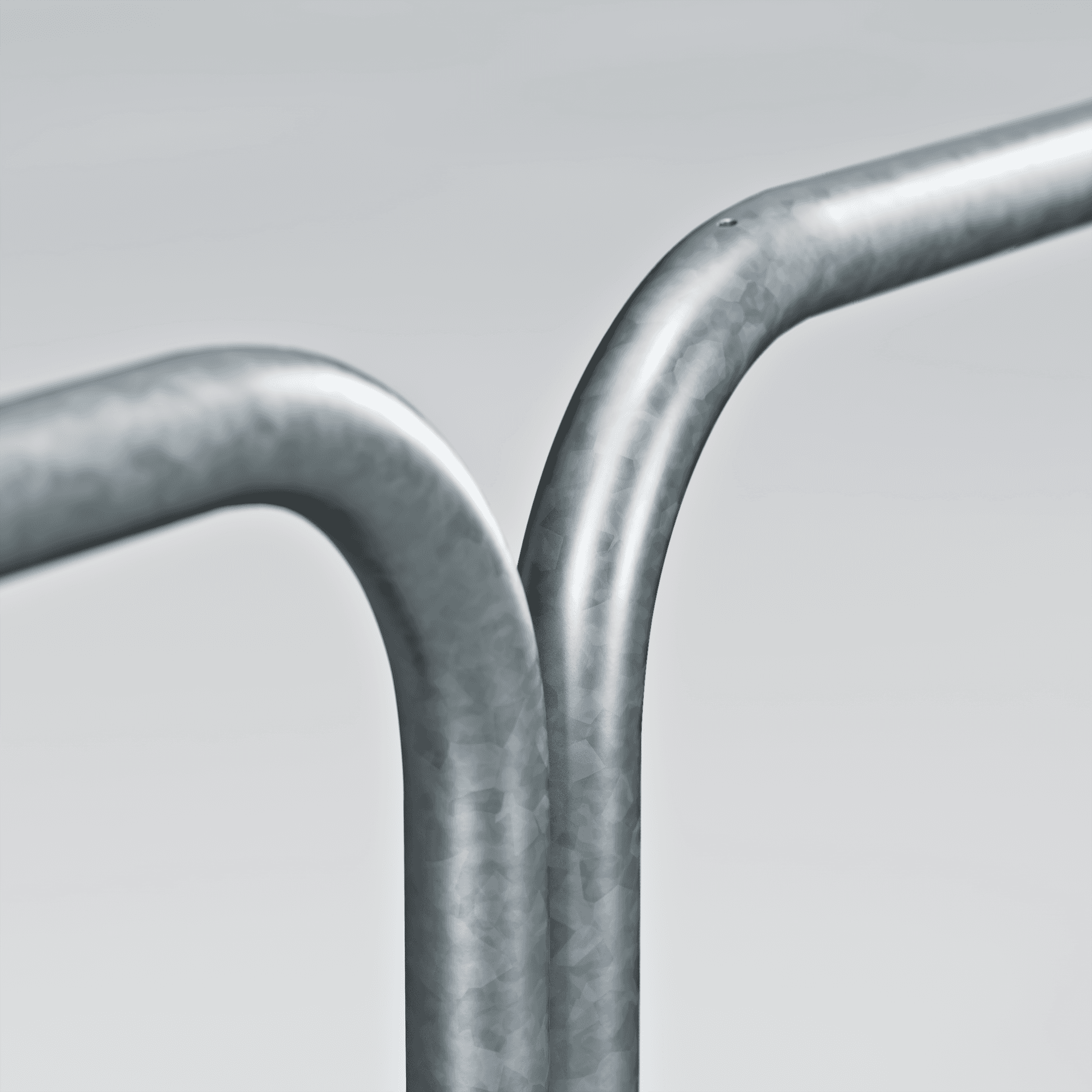

Railing BÅGRÄCKE 76
BÅGRÄCKE är enkelhet och stabilitet i perfekt harmoni, designat för att passa in i en mängd olika miljöer. Dess flexibilitet blir extra tydlig när en eller flera sektioner enkelt kan bytas ut om räcket skulle skadas.
Recommended colors
For more information about Smekab Citylife's complete range of RAL colours, see the colour chart.
Recommended colors
VFZ
RAL9005

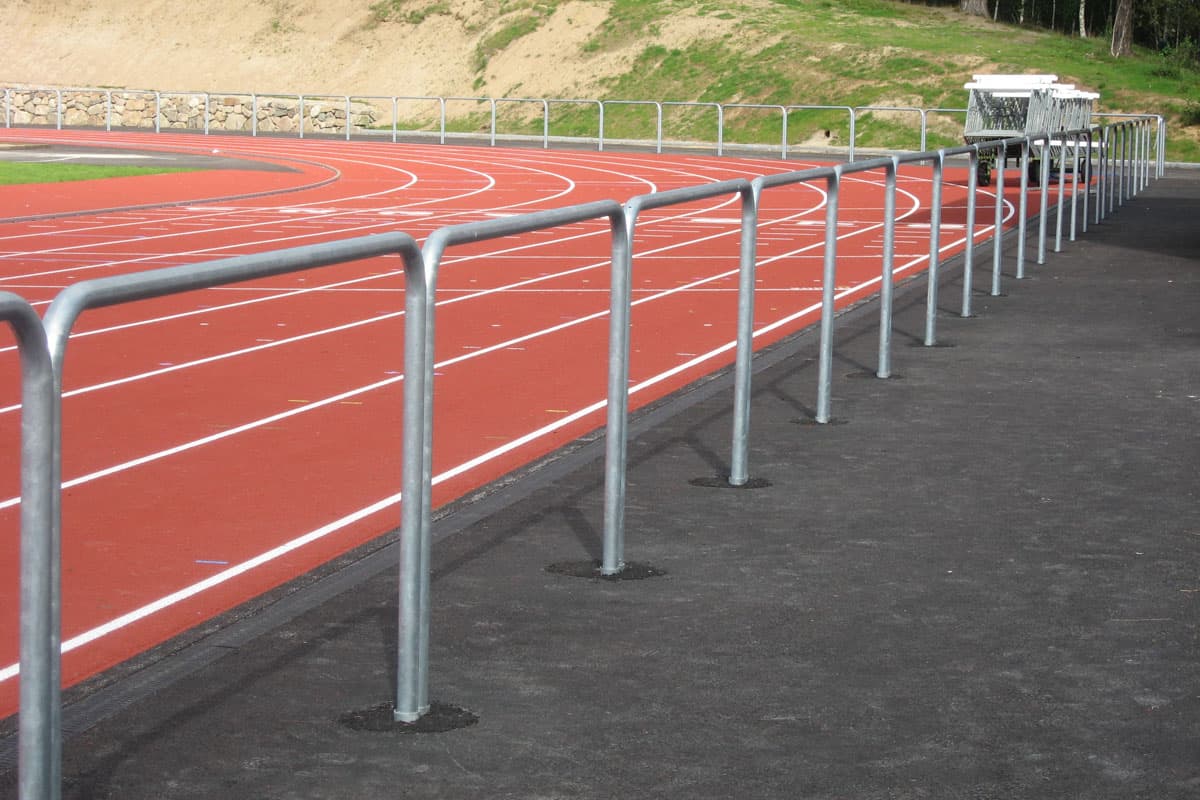

Environment images
Facts
Product name
Railing BÅGRÄCKE 76
Designer
Smekab Citylife
Produced By
Smekab Citylife
Properties
- För plan mark
Material
- Steel, hot galvanized
- Steel, hot galvanized and powder coated
Anchoring
Bolting (below ground level), Bolting

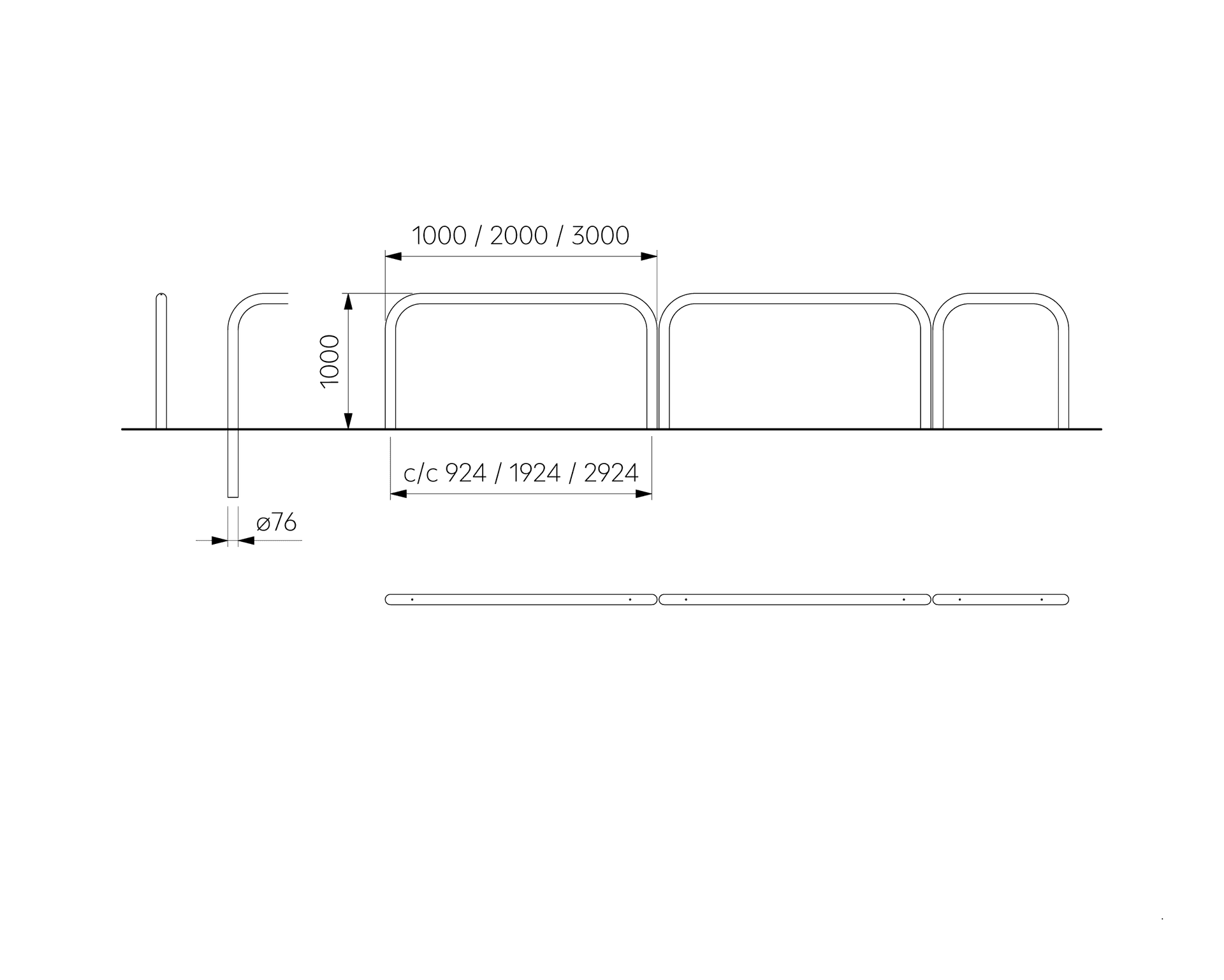

Height
1000 mm
Length
1000, 2000, 3000 mm
Diameter Post
76 mm
Diameter railing pipe
76 mm
Product family
Articles
Mark the articles you're interested in and generate a product sheet.
Articles
| Art. no. | Model | Name | Color |
|---|---|---|---|
| 72301000 | BAG700 | BÅGRÄCKE 76 1,0 m fastb | |
| 72301000X | BAG700 | BÅGRÄCKE 76 1,0 m fastb RAL_____ | Other RAL colours |
| 72301000B | BAG700 | BÅGRÄCKE 76 1,0 m fastb RAL9005 | RAL9005 |
| 72391000 | BAG700 | BÅGRÄCKE 76 1,0 m nedg | |
| 72391000X | BAG700 | BÅGRÄCKE 76 1,0 m nedg RAL_____ | Other RAL colours |
| 72391000B | BAG700 | BÅGRÄCKE 76 1,0 m nedg RAL9005 | RAL9005 |
| 72302000 | BAG700 | BÅGRÄCKE 76 2,0 m fastb | |
| 72302000X | BAG700 | BÅGRÄCKE 76 2,0 m fastb RAL_____ | Other RAL colours |
| 72302000B | BAG700 | BÅGRÄCKE 76 2,0 m fastb RAL9005 | RAL9005 |
| 72392000 | BAG700 | BÅGRÄCKE 76 2,0 m nedg | |
| 72392000X | BAG700 | BÅGRÄCKE 76 2,0 m nedg RAL_____ | Other RAL colours |
| 72392000B | BAG700 | BÅGRÄCKE 76 2,0 m nedg RAL9005 | RAL9005 |
| 72303000 | BAG700 | BÅGRÄCKE 76 3,0 m fastb | |
| 72303000X | BAG700 | BÅGRÄCKE 76 3,0 m fastb RAL_____ | Other RAL colours |
| 72303000B | BAG700 | BÅGRÄCKE 76 3,0 m fastb RAL9005 | RAL9005 |
| 72393000 | BAG700 | BÅGRÄCKE 76 3,0 m nedg | |
| 72393000X | BAG700 | BÅGRÄCKE 76 3,0 m nedg RAL____ | Other RAL colours |
| 72393000B | BAG700 | BÅGRÄCKE 76 3,0 m nedg RAL9005 | RAL9005 |
Downloads
- DWG files
- bagracke-dwg.zip
- Mounting description
- Installation-BAGRACKE-77900135-2019-10-30-sv.pdf (1)
Guarantees and care instructions
- Guarantees
- See documents
- Care instructions
- See documents
